Tough, rugged car pc with a wide range power supply designed specifically for cars, boats, and electric carts
|
|
|
|
|
|
|

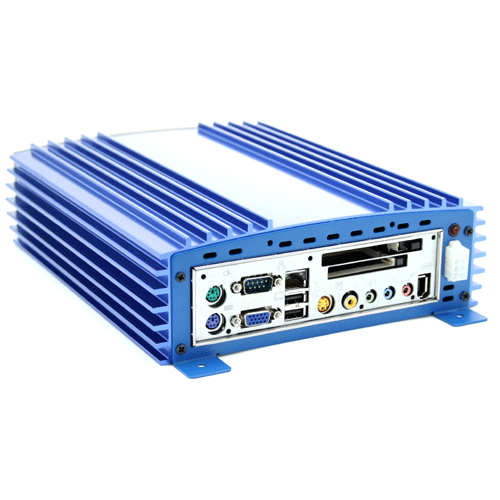

Optional CF/PCMCIA card slots shown
|
|
|
|
|
|
|
|

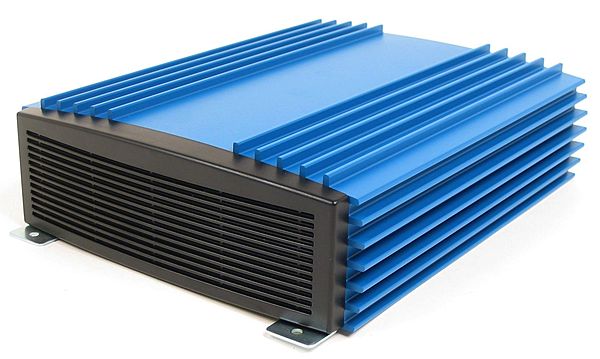

The CPC 1000 is a small, rugged car PC designed to work in harsh environments. It is made from a massive aluminum extrusion that helps remove internal heat. It is available in several configurations from
fanless with VIA 600 Mhz CPU to fan cooled versions with VIA 1.5 Ghz and Pentium-M processors, making it the ideal car PC solution. It includes an intelligent power supply that is designed for
automotive use and can be mounted under a seat or in the trunk. It has special silicone rubber shock-mounts for the internal hard drive and supports one or two 2.5" drives and SATA RAID is
available. Three cooling fans are available for cooling. The CPC 1000 is an ideal mobile solution when a rugged pc is needed in any type of vehicle.
The CPC 1000 has wide input voltage tolerance (6-24V) and can handle tough engine
cranks (down to 5.7V) and still keep going. It also handles tough transient over-voltage situations. The system constantly monitors your car battery voltage levels, preventing deep discharge situations by automatically shutting down until battery levels reach safe levels again. This avoids computer rebooting during car starting and dead batteries when the car is not running.
|
|
|
|
|
|
Specifications
|
|
|
CPU
|
VIA C7 1.5 (Pentium M version are also available)
|
|
Chipset
|
VIA CN700 chipset and VIA VT8237R Plus chipset
|
|
Memory
|
256 Mb (up to 1 GB capacity) 1 x DDR2 533/400Mhz 240 pin socket
|
|
Video
|
VIA Unichrome Graphics AGP with MPEG-2 acceleration
|
|
Hard Drive
|
40 GB, 5400 rpm, 2.5 drive mounted on silicone rubber shock mounts ( 2 x 2.5 SATA RAID hard drives available)
|
|
Hard drive interface
|
2 x SATA and 2 x IDE Ultra DMA 133/100/66 IDE sockets on mainboard
|
|
Compact Flash
|
Optional rear panel socket for compact flash modules (non bootable)
|
|
Card Bus Socket
|
Optional rear panel socket for Type 1 and II Cards, Ricoh RSC476II/RSC485 CardBus controller
|
|
Rear panel I/O ports
|
- COM port, RS232 Serial x1 (Total = 2 RS232 ports)
- USB 2.0 x 2 (Total = 8 USB 2.0 ports)
- PS/2 keyboard and mouse
- VGA 15 pin
- LAN, RJ-45 10/100 base T Ethernet
- RCA jack for SPDIF digital audio or NTSC composite video output
- S video out jack
- IEEE 1394
- Audio - 6 channel audio codec on board, mic, line in and line out (
- Compact Flash socket (optional)
- CardBus Type 1 and Type II socket (optional)
- DC power and system control connector
|
|
Internal I/O on board
|
- Com port, RS232 serial x 1, pin header (Total = 2 RS232 ports)
- USB 2.0, x 3, pin header (Total = 8 USB 2.0 ports)
- CD audio in, pin header
- Front panel audio, mic and line out
- Printer port, LPTpin header
- Fans x 3, pin headers for CPU / Fan 2 / Fan 3
- Optional LVDS header
- SATA x 2 and IDE x 2, pin headers for hard drives
- Floppy Drive pin header
- ATX power connector
|
|
Expansion
|
Internal PCI socket on main board and CardBus socket
|
|
Power Supply Input
|
Voltage range = 6 to 24 vdc
|
|
Output power rating
|
90 watts
|
|
Input current
|
10 A, fuse protected
|
|
Dimensions (W x L x H)
|
8.27 x 10 x 2.2 (210 x 254 x 56 mm)
|
|
Operating System
|
Supports Windows XP, XP Home and Linux Operating Systems. (not included)
|
|
Options available
|
GPS, WiFI, CF modules, IDE flash drive, Windows XP, XP Home, Linux OS
|
|
Ordering Infomation
|
CPC-1000-V1G car pc with 1.5 Ghz VIA CPU, 256 Mb ram, 40 Gb hard drive
|
|
|
