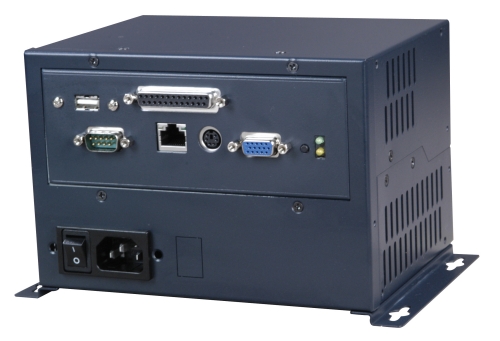

• Compact embedded chassis with power supply
• Supports most Wafer SBC
• Flexible I/O bracket
• AC and DC input power supplies available

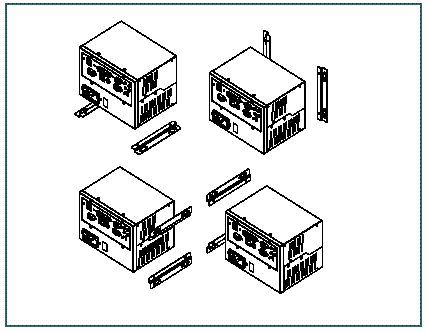

• Designed for panel or wall mounting
• One 2.5” hard drive bay
• AC and DC power supply options
• 115 -230 vac ACE-890AP AC Input AT Power Supply with PFC Function
• 100 vdc ACE-890P 100V DC Input AT Power Supply
• 48 vdc ACE-890T 48V DC Input AT Power Supply
• 24 vdc ACE-890C 24V DC Input AT Power Supply
• 12 vdc ACE-890V 12V DC Input AT Power Supply
• Operating Temperature from 0 to 50 deg. C
• Vibration: 5 - 17 Hz, 0.1” double amplitude displacement
• Shock: 10G acceleration peak to peak - 11ms
• Color: Dark Blue (Pantone 433C)

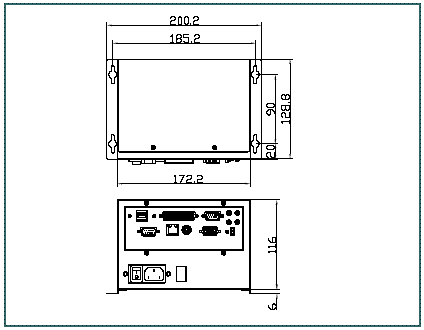

• Dimension: 6.77”W x 4.57”H x 5.08”D (172 x 116 x 129 mm)
• Compatible single board computers: (Click on the board part number for details on boards)
• Wafer 5820
• Wafer 5822
• Wafer 5823
• Wafer C400
• Wafer E667
• Wafer E669
• Wafer C800
• Wafer 6820

Ordering Information:

• EBC-1000/ACE-890A = Industrial 3.5” SBC chassis with 90 watt power supply = $229 each
• BK-5820 I/O bracket and cable set for Wafer 5820 and Wafer 5822 single board computers = $ 25
• BK-5823 I/O bracket and cable set for Wafer 5823, Wafer E669 and Wafer C400 single board computers = $ 25
• BK-6820 I/O bracket and cable set for Wafer 6820 single board computer = $ 25
• BK-C800 I/O bracket and cable set for Wafer C800 and Wafer E667 single board computers = $ 25
• BK-668 I/O bracket and cable set for Wafer E668 single board computer = $ 25
