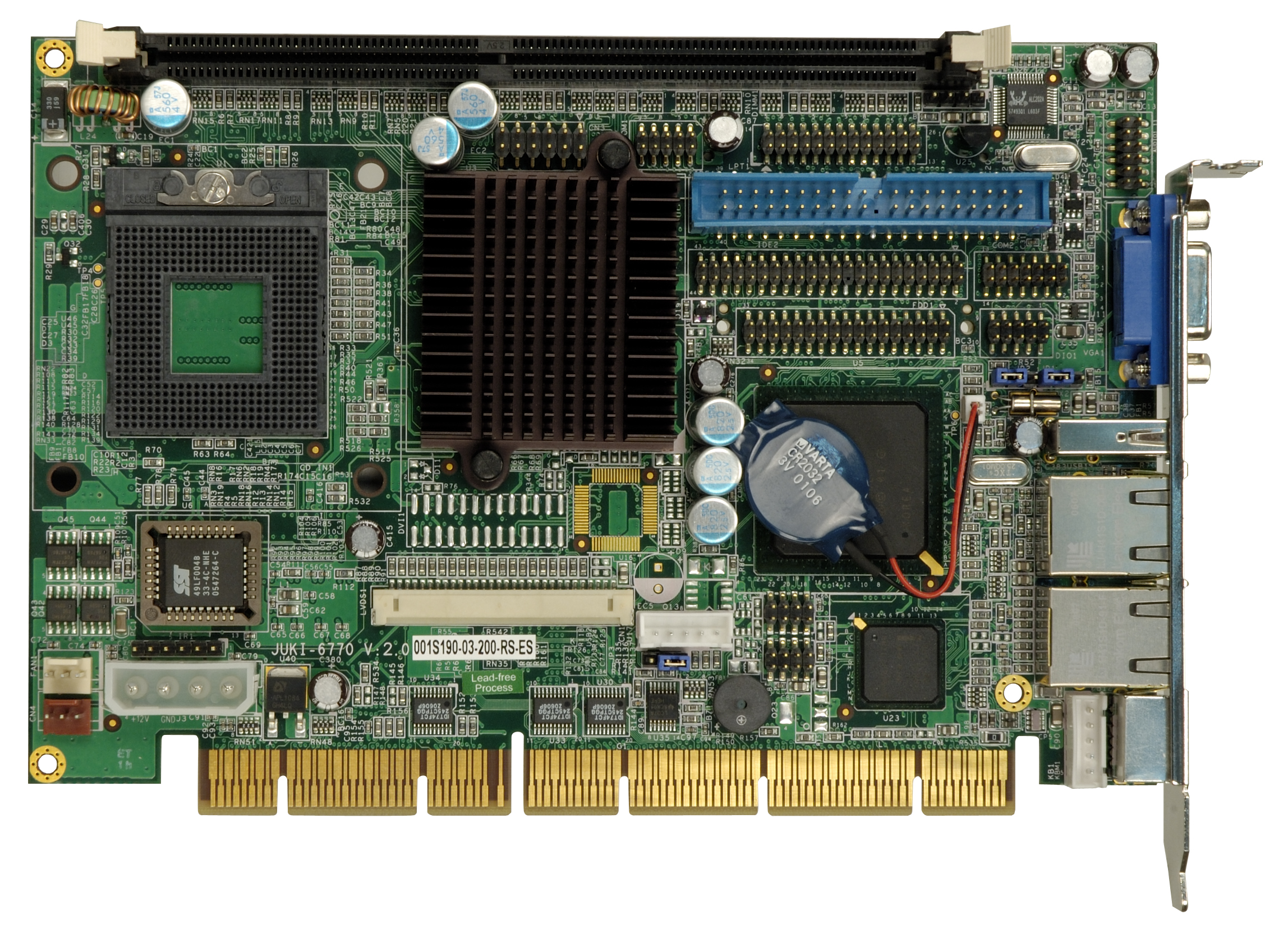

Specifications:

CPU

Socket-479 Intel® Pentium® M / Celeron® M

CPU speed

1GHz/800MHz zero cache

FSB speed

400 MHz

Chipset

Intel® 852GM + ICH4

Memory

1 x 184-pin DDR 266MHz up to 1GB

Video

VGA integrated in Intel® 852GM and Dual channel 18-bit LVDS with DF14-30F connector

Serial ATA drives

IDE drives

1

Floppy Drive

1

Compact Flash

CF Type II

Digital I/O

8 bit digital I/O (4 input / 4 output)

Audio

Realtek ALC655 with AC'97 codec

LAN Ports

2 x 10/100 Mbps Intel® 82562ET/82551ER fast Ethernet

Keyboard + Mouse

1 x PS/2 connector for keyboard/mouse

USB Ports

5 x USB 2.0

Serial Ports

1 x RS-232 and 1 x RS-232/422/485

IrDA

1

Parallel Port

1

Watchdog

Software programmable supports 1~255 sec. system

Power Requirement

5V@3.5A, 12V@1.9A, (Intel® Pentium® M 1.7G/ 2M DDR266/ 512 MB RAM)
5V@2.2A, 12V@0.44A, (Celeron® M 800z, DDR266/ 512MB RAM)

Hardware Monitor

Operating Temp.

operation: 0 ~ 60º (32 ~ 140ºF)

Relative Humidity

operation: 5% ~ 95% non-condensing

Dimension

165mm x 115 mm

Weight

1 kg
