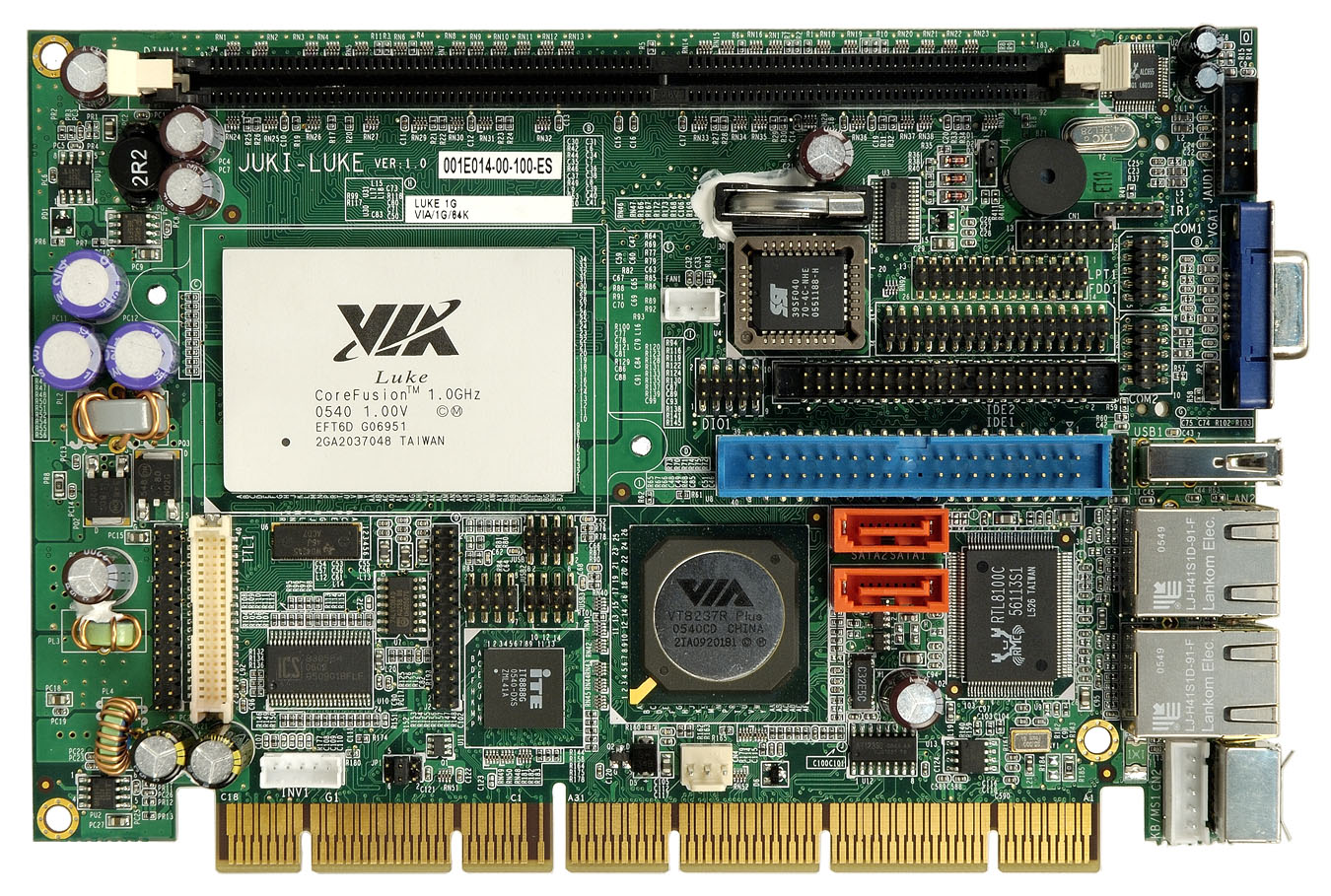

Specifications:

CPU

VIA LUKE 1GHz or 533 MHz processor

CPU speed

1 Ghz or 533 mhz

Chipset

VT8237R+

Memory

1 x 184-pin DDR 400/333MHz up to 1GB

Video

• CRT integrated in VIA LUKE,
• LCD TTL 24 bit TTL LCD integrated in VIA LUKE
• LVDS Dual 18 / 24 bit LVDS support by ILUKE-LVDS daughter board

Serial ATA drives

2 x SATA with RAID 0, 1, 10 and JBOD function

IDE drives

2

Floppy Drive

1

Compact Flash

1 x CFII

Expansion

Audio

Realtek ALC655 with AC'97 codec

LAN Ports

Dual RTL8110S Gigabit LANs

Keyboard + Mouse

1 x PS/2 keyboard/ mouse

USB Ports

7 x USB 2.0

Serial Ports

2 x RS-232

IrDA

Parallel Port

1

Digital I/O

8 bit digital I/O, 4 input / 4 output

Watchdog

Software programmable supports 1~255 sec. system reset

Power Requirement

5V@2A, 12V@0.073A, (LUKE-1G, 256MB/ DDR400 RAM)

Hardware Monitor

Operating Temp.

operation: 0 ~ 60º (32 ~ 140ºF)

Relative Humidity

operation: 5% ~ 95% non-condensing

Dimension

165mm x 115 mm

Weight

GW: 1.0Kg
