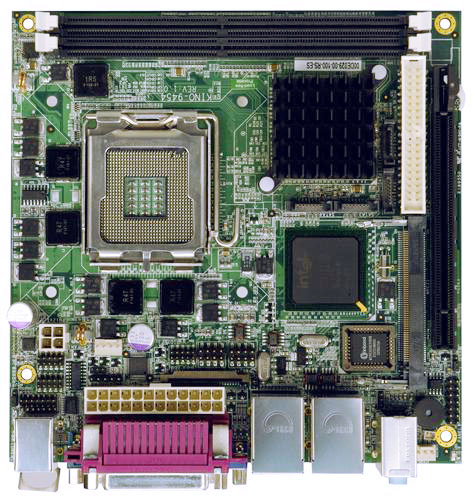

KINO-9454 Mini-ITX Motherboard for Pentium 4/ Pentium D 1066/800/533MHz FSB CPU with Video card socket, SATA II, Dual PCI-E Gigabit Lans, USB 2.0 and Audio

KINO-9454-s

Larger image

Features

  • Intel® Pentium4 and  PentiumD FSB 1066/800/533MHz processor
  • Intel®945G chipset
  • Dual BROADCOM BCM5787 for PCI-E Gigabit LANs
  • PCI express video graphic card socket
  • 4 x SATA drives
  • Digital I/O - 8 bits
  • Compact Mini ITX size - 6.7” x 6.7”
  • New compact chassis available - see the ECK 3699G chassis

Specifications:

CPU

Socket LGA 775 Intel® Pentium® D/4/Celeron® D with 533/800/1066 MHz FSB

CPU speed



FSB speed

1066/800/533 Mhz

Chipset

Intel®945G chipset+ ICH7M

Memory

2 x 240-pin Dual channel DDRII 400/533/667 MHz up to 2GB

Video

Analog CRT integrated in Intel 945G and PCI-E socket for a video board, DVI, VGA and LVDS options,

Serial ATA drives

4 x SATAII-3000

IDE drives

1

Floppy Drive



Compact Flash



Digital I/O

8-bit digital I/O (4 input and 4 output)

Expansion

1 x Mini PCI and 1 x PCI-E x16 (Supports PCI-Ex1/2/4/8/16 PCI-E add on cards)

Audio

Realtek ALC655 with AC'97 codec

LAN Ports

Dual BROADCOM BCM5787 PCI-E GbE with ASF2.0 remote control support

Keyboard + Mouse

2 x PS/2 for KB/MS

USB Ports

8 x USB 2.0

Serial Ports

3 x RS-232 and 1 x RS-232/422/485

IrDA

1 x IrDA by pin header

Parallel Port



Watchdog

Software programable 1-255 sec

Power Requirement

5V@1.8A, +12V@5.81A, +3.3V@3.49A, 5VSB@0.37A (Pentium 4 3.06GHz, DDR2 533MHz 1GB*1) -- 3D MARK

Operating Temp.

0 to 60 deg C

Relative Humidity

0 to 95% non condensing

Dimension

6.7” x 6.7” (170 mm x 170 mm)

Weight

GW: 1100 g; NW: 400 g

Ordering Information:

  • KINO-9454-R10 Mini ITX Motherboard with Intel Pentium D 1066MHz Processor, Dual PCI-E GbE, SATAII and Audio
  • PVGA-M1600L ATI M56P mobile grade PCI Express Graphic Card with VGA, DVI, 1080i HDTV and dual channel 24-bit LVDS interface
  • 32200-000077-RS  RS-232/422/485 Cable
  • CB-USB02-RS  USB Cable
  • CF-520-RS    CPU Cooler
  • CF-775A-RS   CPU Cooler
