Description:

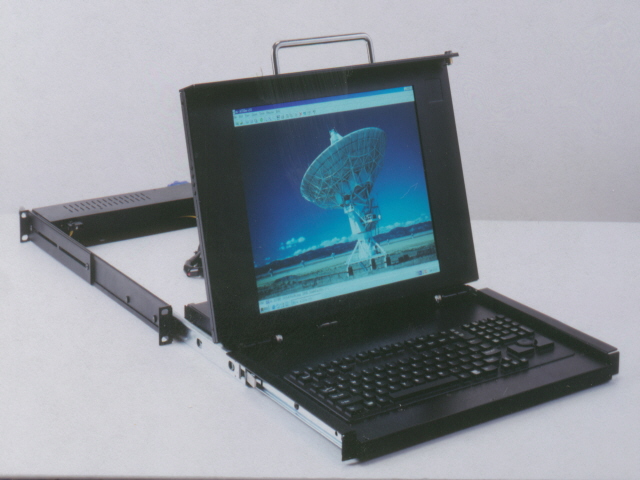

This Flat Panel Monitor-Keyboard Drawer is an integrated monitor/input devices rack-mountable assembly designed for use with rack-mounted servers. It can be easily set up in a standard 19” equipment rack or cabinet. The monitor-keyboard is mounted on slide rails. The retractable assembly occupies only 1U space, and its fold-down design makes storage and access a real convenience. The monitor-keyboard consists of a 15” TFT active matrix LCD monitor, LCD controller designed to automatically work with any standard analog RGB video signal from a computer, a keyboard with built-in touchpad mouse, and power supply.

Specifications:

• Full size mechanical key-switch keyboard
• Mouse touch pad with dual buttons
• 2x PS/2, 1x VGA, 1x audio-in connector
• 60W AC 90-260V full-range
• Adjustable rack length fits from 19.5" - 23.5"

Physical

• Enclosure 1U available in black color only
• Dimensions 19"W x 19.5"D x 1.75"H (1U)
• Weight 35LBS (1U)

LCD Specifications

• LCD Type TFT
• LCD Colors 262K
• LCD Size 15.1"
• Resolution 1024x768
• Brightness = 250 cd/m2 (nits)
• Response 25ms
• Contrast 300:1
• Temperature 0° to 40°C(Operating) -20° to 60°C(Storage)
• Humidity 10%-90% non-condensing
• LCD MTBF 50,000 hours

Ordering Information

KVM 15TX 15” Flatpanel/keyboard combination in a black 1 U rackmount enclosure
