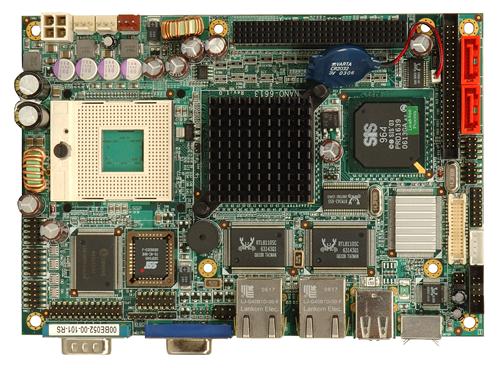

Specifications:

CPU

Intel® Pentium® M/ Celeron® M FSB 533/400MHz processor

CPU speed

Pentium M to 2.1 Ghz or higher

FSB speed

533/400 Mhz

Chipset

SiS 661CX + SiS 964

Memory

1x DDR 200-pin SO-DIMM sockets of 400/333 MHz up to 1GB

Video

CRT integrated in SiS 661CX LVDS/TV-Out: Dual 24 bit LVDS/TV-Out support

Serial ATA drives

2 x SATA-150

IDE drives

1

Floppy Drive

Compact Flash

1 x CFII socket

Expansion

1 x PCI-104 socket

Audio

AC'97 2.3 Realtek ALC655

LAN Ports

Dual RTL8110SC for GbE

Keyboard + Mouse

USB Ports

6 x USB 2.0

Serial Ports

3 x RS-232 and 1 x RS-232/422/485

IrDA

1 x IrDA by pin header

Parallel Port

1

Digital I/O

8 (4in and 4 out)

Watchdog

Software programable 1-255 sec.

Power Requirement

+12V@3.78A, 5Vsb@0.35A (Pentium-M 2.1GHz, DDR333 SO-DIMM) --3D MARK

Hardware Monitor

Operating Temp.

0 ~ 60 C (32 ~140 F)

Relative Humidity

5% ~ 95% non-condensing

Dimension

165 mm x 115 mm

Weight

NW: 800g, GW: 280g
