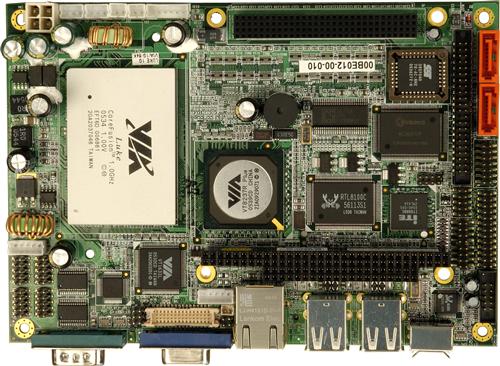

Specifications:

CPU

VIA Luke 1 Ghz or 533Mhz cpu

CPU speed

1 Ghz or 533 mhz

FSB speed

Chipset

VIA VT8237R+

Memory

1 x 200 pin DDR 400/333 Mhz SODIMM socket supports up to 1 Gb

Video

CRT VGA and dual channel 18 bit LVDS by VIA VT1631 chip

Serial ATA drives

2 x SATA-150 with RAID 0,1,10 and JBOD function

IDE drives

1

Floppy Drive

Compact Flash

1 x CFII socket

Digital I/O

Expansion

1 x PC/104+ (PCI+ISA BUS)

Audio

Realtek ALC655 with AC'97 codec

LAN Ports

RTL8110S for Gigabit LAN

Keyboard + Mouse

1 x PS/2 for KB/MS

USB Ports

8 x USB 2.0

Serial Ports

5 x RS232, 1x RS232/422/485

IrDA

1

Parallel Port

1

Watchdog

Software programmable supports 1~255 sec. system reset

Power Requirement

12V@1.62A (VIA LUKE 1GHz with DDR 333MHz 512MB RAM)

Operating Temp.

0 to 60 deg C

Relative Humidity

0 to 95% non condensing

Dimension

4.53” x 6.5” (115mm x 165 mm)

Weight

 NW: 0.77lbs (350g)  GW: 2.5lbs (1100g)
