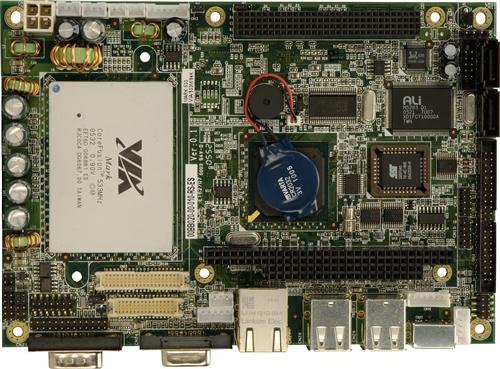

Specifications:

CPU

VIA Mark

CPU speed

800 Mhz or 533 Mhz cpu

FSB speed

Chipset

VIA VT82686B

Memory

1 x 144 pin SO-DIMM socket PC100/133 SDRAM up to 512 Mb

Video

Integrated in VIA® MARK, support CRT and TFT/ LVDS LCD displays
LVDS 24-bit TTL/dual channel 18-bit LVDS integrated in VIA® MARK

Serial ATA drives

2 x SATA-150 with ALI M5283 RAID 0,1 function

IDE drives

1

Floppy Drive

Compact Flash

1 x CFII socket

Digital I/O

8 bit digital I/O, 4 input/ 4 output by W83977G super I/O chip

Expansion

1 x PC/104+ (PCI+ISA BUS)

Audio

Realtek ALC655 with AC'97 codec

LAN Ports

RTL8100C LAN

Keyboard + Mouse

1 x PS/2 for KB/MS

USB Ports

4 x USB 1.1

Serial Ports

3 x RS232, 1x RS232/422/485

IrDA

1

Parallel Port

1

Watchdog

Software programmable supports 1~255 sec. system reset

Power Requirement

+12v@1.46A (VIA® MARK 800MHz, PC133 512MB)

Operating Temp.

0 to 60 deg C

Relative Humidity

0 to 95% non condensing

Dimension

4.53” x 6.5” (115mm x 165 mm)

Weight

NW: 0.77lbs (350g) GW: 2.5lbs (1100g)
