6.4" Flat panel computer with 800 mhz cpu, 10 Gb hard drive 128 Mb ram and touchscreen

Specifications:

• LCD Display: 6.4" color TFT LCD, 640 x 480 resolution, High brightness 300 nit (cd/m2)
• CPU: Low Power 800Mhz, P-III equivalent VIA C3, soldered on board
• System Chipset VIA VT8606 Northbridge and VIA686B
• System Memory: SODIMM 128 Mb is standard expandable to 512MB
• Touch Panel : Long life resistive touch screen
• Video Controller Chipset Trident chipset supports AGP 4X with 32MB share video memory, 3D/2D support
• Water-Resistant Front Panel: Meets IP-56, 65, NEMA 4, 12 water resistant
• Hard Drive : 10 GB standard 2.5” Hard drive (20 or 40 Gb Optional)
• Disk On Module: (Optional) Supports internal Disk on Module solid state drive
• Serial ports : 4 x COM ports (3 x RS232 ports and 1 x RS232/422/485), 1 COM is used for touch screen
• USB port : 2 x USB ports, USB 1.1 compliant
• Parallel Port : LPT port for Printer connection
• Keyboard and Mouse : One PS/2 KB and Mouse
• Audio: Speaker and line jacks
• Ethernet Network Controller Realtek 8139C supports 10/100 Mbps Ethernet LAN
• External CDrom connector: IDE and power connectors, use with external CDrom drive for loading software
• Vibration-Resistant: 5 - 17 Hz, 0.1" double amplitude displacement, 17-500 Hz, 1.5G acceleration peak to peak

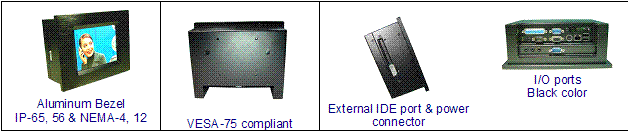

• Front Bezel Thick, 10 mm solid aluminum, Black or brushed silver finish
• Housing: 1.2 mm thick steel
• Wall-mounting: VESA –75 compliant hole pattern on rear. Optional mounting bracket available
• Bottom cable connections: Great for use where space behind the panel is limited
• Shock-Resistant Design 10G acceleration peak to peak (11 msec.duration)
• Power: External universal 100 – 240V AC power adapter (12vdc, 24 vdc and 48 vdc versions available
• Operating System: (Optional) Windows or Linux, Standard drivers are included
• Temperature: Operating temp. = 0 to 50 deg. C

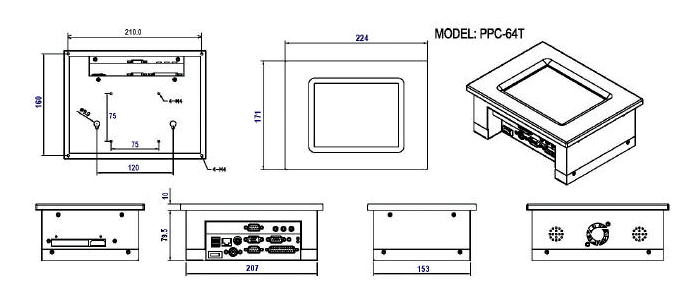

Dimensions:

• Overall dimensions: 8.8” w x 6.7” h x 3.5” d ( 224(W) x171(H) x 79.5 (D) mm)
• Front Panel: 8.8”w x 6.7”h x 0.39” thickness
• Rear enclosure dimensions: 8.15” w x 6.03” h x 3.15” d
• Panel cutout: Approximately 8.25” w x 6.1” h

Ordering Information

• PPC-64: with 800Mhz CPU, 10 Gb Hard drive, 128 Mb RAM and Touchscreen.   $1399
• Front panel color : Black is standard (Silver brushed aluminum - available as a special order)
