Specifications

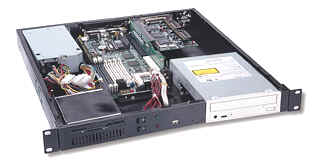

19" 1U Rackmount Chassis with a 2 slot backplane and 200 watt power supply

Features
  • 19" Compact size rack mounted chassis
  • Heavy duty steal for harsh industrial environments
  • Backplane supports: PICMG x 1, PCI x 1 or ISA x 1
  • Includes 200W power supply
  • Supports one 3.5" HDD drive, one 3.5" slim FDD drive, one 5.25" CD-ROM drive or one 3.5" HDD drive
  • One USB connector at front panel
  • Construction Heavy duty steel, 19" Rackmount chassis
  • Disk Drive Bays Supports one 3.5" HDD drive and one 3.5" slim FDD drive and one 5.25" CD-ROM drive or one 3.5" HDD drive
  • Cooling Fan Three 4cm DC Fans (7.0 CFM ea.)
  • Controls Power ON/OFF, RESET
  • Status Indicators Power ON/OFF, HDD status
  • Dimension (H x W x D) 44.4 x 483 x 500mm (1.75" x 16.97" x 19.69")
  • Weight 6kgs (include power supply)
  • Passive Backplanes Option 2 slot PICMG PCI/ISA backplane (PICMG x 1, PCI x 1 or ISA x 1)
  • Power supply Included JET-216AP 200W ATX switching power supply with PFC

Environmental Specification
  • Operating Temperature 0 to 50 deg C
  • Relative Humidity 5% to 95%, non-condensing
  • Altitude 10,000ft(3,000m)
  • Vibration 1.5G Max and 0.1" p-p at 5 to 500Hz
  • Shock 10G peak acceleration (10m/sec)
  • Safety Meets UL, CSA and TUV
  • EMI FCC Class A and CE

Ordering Information

RC 1B2BK - 19” 1U Black chassis with 200W power and 2-slot backplane - $299
