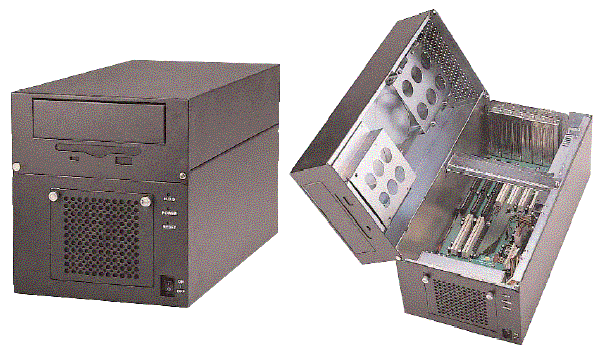

Full-size Chassis with 200W Power Supply and 6 slot PICMG Backplane

Features

• Supports Full-size and half-size CPU cards
• Includes a 6-slot PICMG backplane and 200W ATX power supply
• Two layer special design.
• Upper layer for drives
• Bottom layer for CPU cards and power supply.
• Upper layer can be opened for easy access to Hard Drive or CPU cards.
• With HDD anti-vibration frame to protect HDD
• Front removable fan
• Wallmount or bench top design
• Rugged construction for harsh industrial environments

Specifications

• Construction - Heavy duty steel
• Disk Drive Bays - support one 3.5" external drive, one 5.25” external drive and one 3.5" internal drive
• Cooling Fans - One 8cm DC Fan (38.6 CFM)
• Controls Power - ON/OFF, RESET switch
• Status Indicators  - Power ON/OFF, HDD status
• Internal Speaker - One Buzzer
• Dimension (H x W x D) -  7.1" x 7.9" x 15.5" (180.5 x 200x 393mm)
• Vibration -  1.5G Max and 0.1" p-p at 5 to 500Hz
• Shock - 10G peak acceleration (10m/sec)
• Safety - Meets UL, CSA, and TUV
• EMI -  FCC Class A and CE
• Passive Backplane -  6-slot PICMG backplane (1 x PICMG, 2 x ISA, 3 x PCI)
• Power Supply - 200W ATX power supply

Environmental Specification

• Operating Temperature - 0°C to 50°C
• Relative Humidity -  50% to 95%, non-condensing
• Altitude - 10,000ft (3,000m)

Ordering Information

WC 6A6PBK - 6 slot Full size Chassis with 200 watt power supply & 6 slot PICMG Backplane
