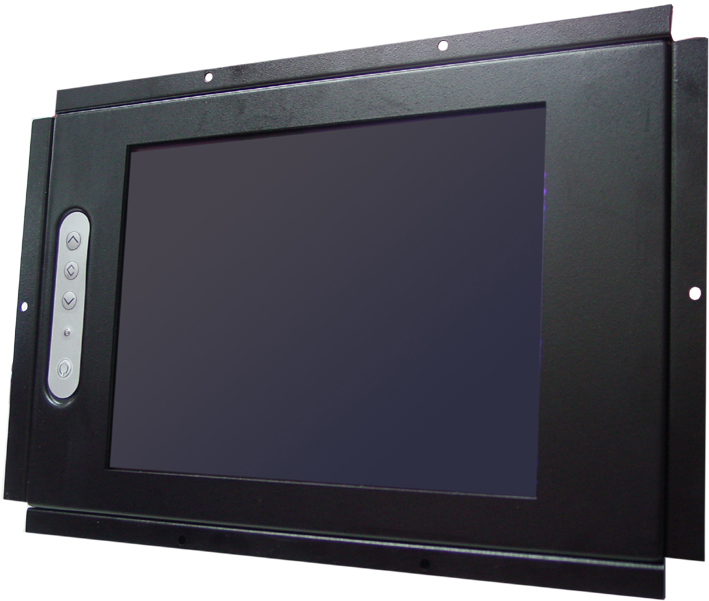

	10.4” sun readable LCD monitor with front bezel

		Features: Very High Brightness - 1500 nits Low Cost VGA input is standard Composite, S video and DVI optional Auto dimming option available 12 vdc powered with external AC adapter Front or rear mounted adjustment keypad Touchscreen options available

Specifications:
LCD Display	10.4" TFT Active Matrix Panel
Brightness	1500 nits (cd/m²⁾
Pixel Pitch(mm)	0.264(H) x 0.264(V)
Max. Resolution	800 x 600 SVGA
Contrast Ratio	500:1 high contrast ratio
Display Area	8.31” x 6.23” (211.2 x 158.4mm)
Response Time(Typ.)	35 ms(Typical)
Display Colors	262,144 colors
Viewing Angle	horizontal = +60° to -60° and vertical = +40° to -60°
Video input signal	VGA 15 Pin D is standard, additional composite, S video, DVI inputs are optional
Composite and S-video input	Optional
DVI input	Optional
Touchscreen	Optional Resistive or SAW available
OSD Control Buttons	Power, Menu, Select (+,-) Auto (can also be mounted on rear chassis)
Auto dimming function	Optional front panel auto dimming sensor that adjusts brightness for ambient light
Power input	12 vdc supplied by an external power supply which operates from 115 vac
Power Consumption	30W
Dimension	13.38” x 8.97” x 2.13” (340x 228x 54.2 mm)
Weight (Net)	7lbs (3.15 kg)

Ordering Information:

LD 1041-V 10.4” Sun Readable Industrial Monitor with VGA input
LD 1041-VCS 10.4” Sun Readable Industrial Monitor with VGA, composite and S video input
LD 1041-VD 10.4” Sun Readable Industrial Monitor with VGA and DVI input
Auto dimming option add an A to the above part numbers
Touchscreen option add TR for resistive or TS for SAW touchscreen to the above part numbers
