Specifications
|
|
|
LCD
|
15" color TFT , 1024 x 768 resolution, 1700 nit outdoor viewable, 16,7 million colors, viewing angle is H =
140 deg and V = 65 up and 60 down, LCD life = 300,000 hours, backlight = 50, 000 hours
|
|
CPU
|
1.2 Ghz Intel P4 ultra low power mobile, high speed CPU
|
|
Chipset
|
Intel 855 chipset with 852GM graphics chip
|
|
System Memory
|
Up to 1 Gb SODIMM memory
|
|
Video
|
Intel extreme graphics 2 with 266 Mhz VGA core and 256 bit 3D engine with dynamic memory sharing
|
|
Hard Drive
|
40 Gb Slim 2.5 HDD ( larger drives available)
|
|
CD or DVD drive
|
CDrom or DVD drives are optional
|
|
Touchscreen
|
6-Wire long life analog resistive touch screen, (3 million touchses) Optional vandal proof 7.5 mm thick capacitive touch screen
|
|
LAN
|

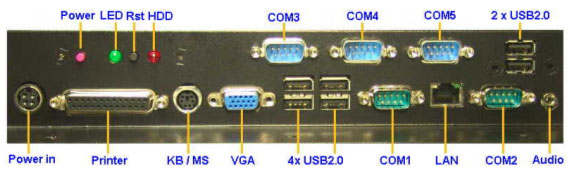

Fast 1 Gbit LAN, Intel 82540EM 10/100/1Gb Ethernet port, RJ45 connector on rear I/O panel
|
|
USB ports
|
6 x USB 2.0, high speed 480 Mb per second available on rear I/O panel
|
|
Serial ports
|
6 x COM ports, COM 1 to 5 are RS232 and COM4 is RS232/422/485, COM 1 to 5 on rear I/O panel, COM 6 internally used
for touchscreen. Pin 9 can supply 5vdc or 12vdc all ports
|
|
Printer port
|
LPT port for Printer connection.
|
|
Audio
|
Intel ICH4 with Realtek ALC 650 AC97 codec
|
|
Speakers
|
2 stereo loud speakers and internal amplifier
|
|
Keyboard/Mouse
|
One PS/2 Keyboard and Mouse 6 pin port with Y cable
|
|
Digital I/O
|
Internal 8 bit digital I/O port - each bit is configurable as input or output.
|
|
VGA monitor
|
One 15 pin connector on I/O panel
|
|
Expansion Slots
|
1 Compact Flash socket
|
|
Power Supply
|
External Industrial grade AC 100240V power supply. DC 12V, 24V, 48V input available at extra cost (PPC-1586-1700N requires 19 vdc input power)
|
|
Construction
|
This is a high-end industrial grade Panel PC used for industrial, medial, military harsh environments
|
|
Front Panel
|
Extra thick 10mm aluminum alloy bezel.
|
|
Enclosure
|
Housing is made from 1.2 mm extra thick rigid steel
|
|

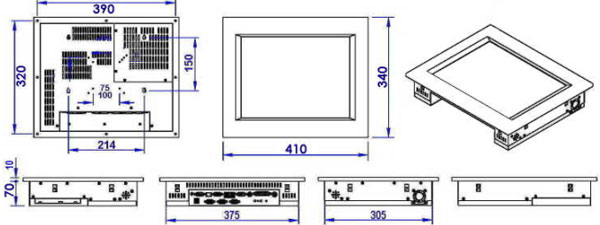

Dimensions
|
15.35 x 12.6 x 3.15 (390 x 320 x 80 mm)
|
|
Weight
|
Approx. 24 lbs
|
|
Temperature
|
Operating temperature = -1 to 50°C, storage = -20 to +70 °C ( 2 fans in chassis and 1 CPU fan)
|
|
Vibration rating
|
Meets very strict IEC-60068 standard. 5 500 Hz at 2G random vibration life test under Windows XP
|
|
Shock rating
|
Meets very strict IEC-60068 shock life test at 15G acceleration for 11 msec duration under Windows XP
|
|
Mounting options
|
Meets VESA-75, 100 standard mounting holes. Optional VESA wall-mount kit is available
|
|
Ordering Information
|
PPC-1586PT- 1700N: 15" sun readable panel pc with 1700 Nit LCD, 1.2 GHz CPU, 256MB RAM, LAN, 4 x USB 2.0, 4 x COM, Touchscreen / 40GB HDD / CD-ROM
PPC-1586PT- 1700N-VP 15" sun readable panel pc with 1700 Nit LCD, 1.2 GHz CPU, 256MB RAM, LAN, 4 x USB 2.0, 4 x COM, anti vandalism, 7.5mm capacitive touchscreen / 40GB HD / CD-ROM
|
