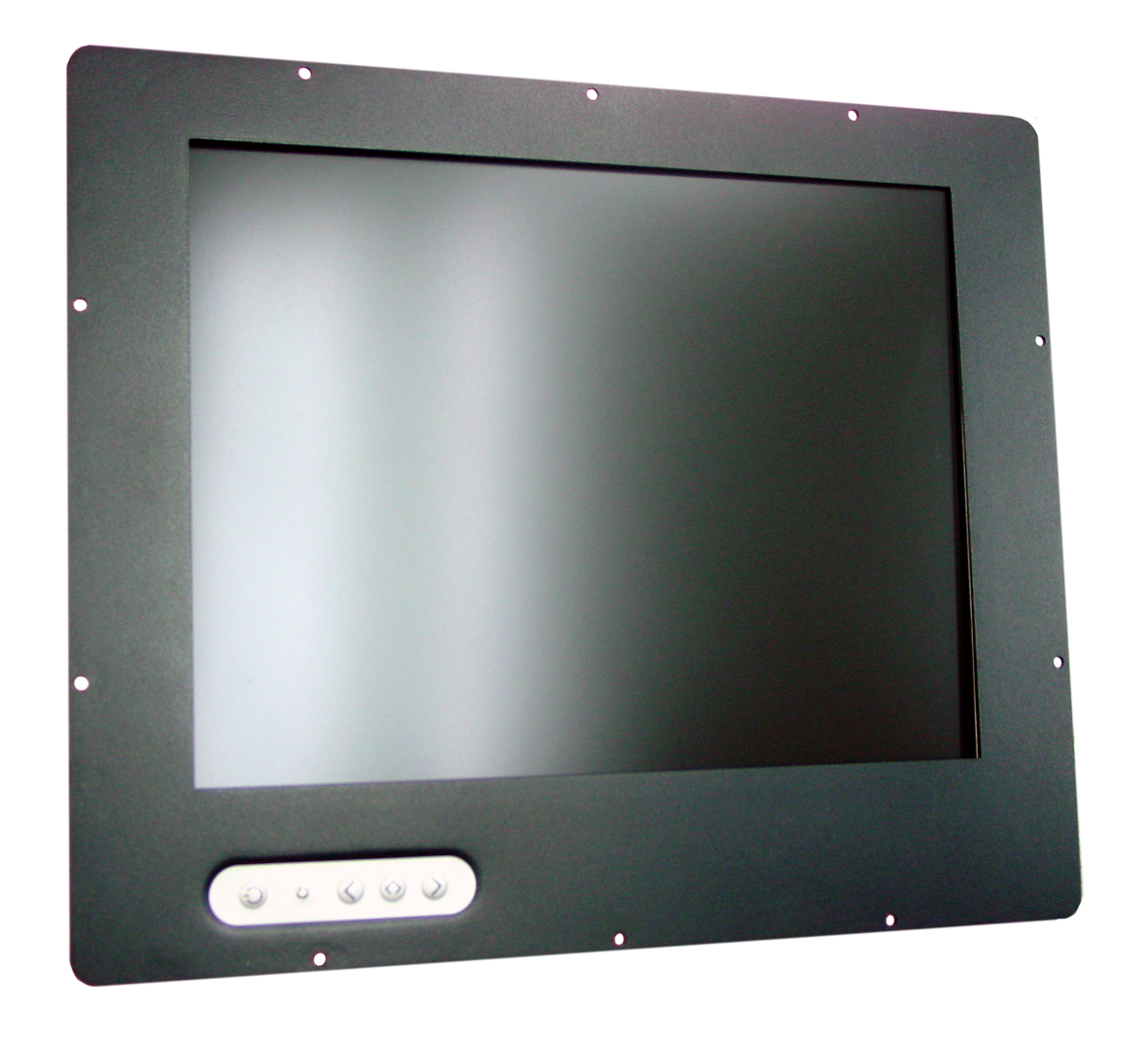

	15” sun readable LCD monitor with front bezel

		Features: Very High Brightness - 1600 nits Low Cost VGA input is standard Composite, S video and DVI optional Auto dimming option available 12 vdc powered with external AC adapter Front or rear mounted adjustment keypad Touchscreen options available

Specifications:
LCD Display	15" TFT Active Matrix Panel
Brightness	1600 nits (cd/m²⁾
Pixel Pitch(mm)	0.297(H) x 0.297(V)
Backlight	long life CC lamps
Max. Resolution	1024 x 768
Contrast Ratio	400:1 high contrast ratio
Display Area	304.128x 228.096mm
Response Time(Typ.)	16ms(Typ.)
Display Colors	262,144 colors
Viewing Angle	+70 ~-70 (H), +50 ~-70 (V)
Video input signal	VGA 15 Pin D is standard, additional composite, S video, DVI inputs are optional
Composite and S-video input	Optional
DVI input	Optional
OSD Control Buttons	Power, Menu, Select (+,-) Auto (can also be mounted on rear chassis)
Auto dimming function	Optional front panel auto dimming sensor that adjusts brightness for ambient light
Power input	12 vdc supplied by an external power supply which operates from 115 vac
Power Consumption	56.5W
Dimension	389x317x51.1
Weight (Net)	3.92kg

Ordering Information:

LD 1548-V 10.4” Sun Readable Industrial Monitor with VGA input
LD 1548-VCS 10.4” Sun Readable Industrial Monitor with VGA, composite and S video input
LD 1548-VD 10.4” Sun Readable Industrial Monitor with VGA and DVI input
Auto dimming option add an A to above part numbers
Touchscreen option add T to above part numbers
