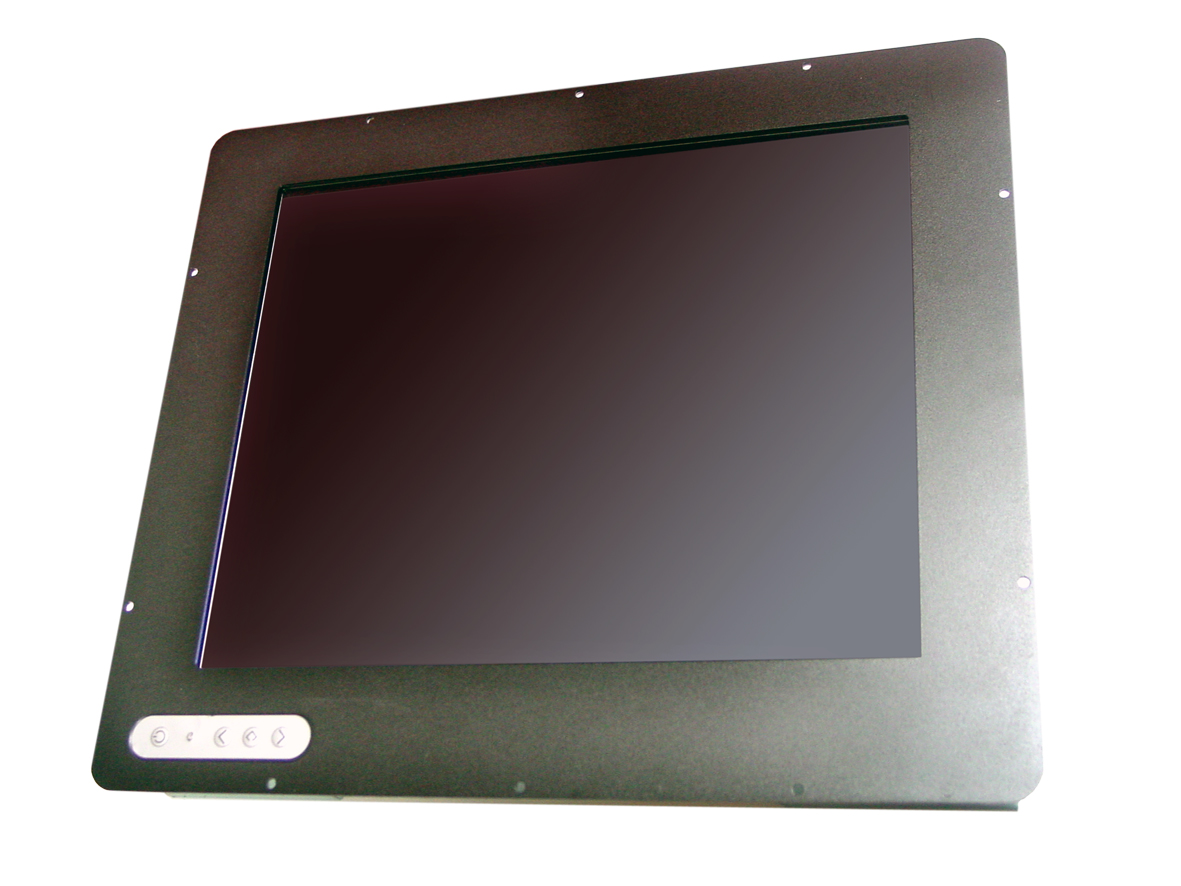

LD1745

Specifications:
LCD Display	17" TFT Active Matrix Panel
Brightness	1000 nits (cd/m²⁾
Pixel Pitch(mm)	0.264 (H) x 0.264(V)
Backlight	long life CC lamps
Max. Resolution	1280 x 1024 (SXGA)
Contrast Ratio	500:1 high contrast ratio
Display Area	(13.3” x 10.64” (337.92 x 270.336mm)
Response Time (Typical)	16ms
Display Colors	262K
Viewing Angle	horizontal = +80° to -80° and vertical = +75° to -75°
Video input signal	VGA 15 Pin D is standard, additional composite, S video, DVI inputs are optional
Composite and S-video input	Optional
DVI input	Optional
Touchscreen	Optional Resistive or SAW (surface accoustic wave) available
OSD Control Buttons	Power, Menu, Select (+,-) Auto (can also be mounted on rear chassis)
Auto dimming function	Optional front panel auto dimming sensor that adjusts brightness for ambient light
Power input	12 vdc supplied by an external power supply which operates from 115 vac
Power Consumption	65W
Dimension	17.16” x 14.68” x 2.13” (436 x 373 x 54.1mm)
Weight (Net)	9 lbs (4.1 kg)

Ordering Information:

LD -1745V ” Sun Readable Industrial Monitor with VGA input
LD -1745VCS ” Sun Readable Industrial Monitor with VGA, composite and S video input
LD -1745VD ” Sun Readable Industrial Monitor with VGA and DVI input
Auto dimming option add an A to the above part numbers
Touchscreen option add TR for resistive or TS for SAW to the above part numbers


	Digital Technology, Inc. 985 809 1766 Fax: 985 809 1665 email: sales@digitaltechinc.com
