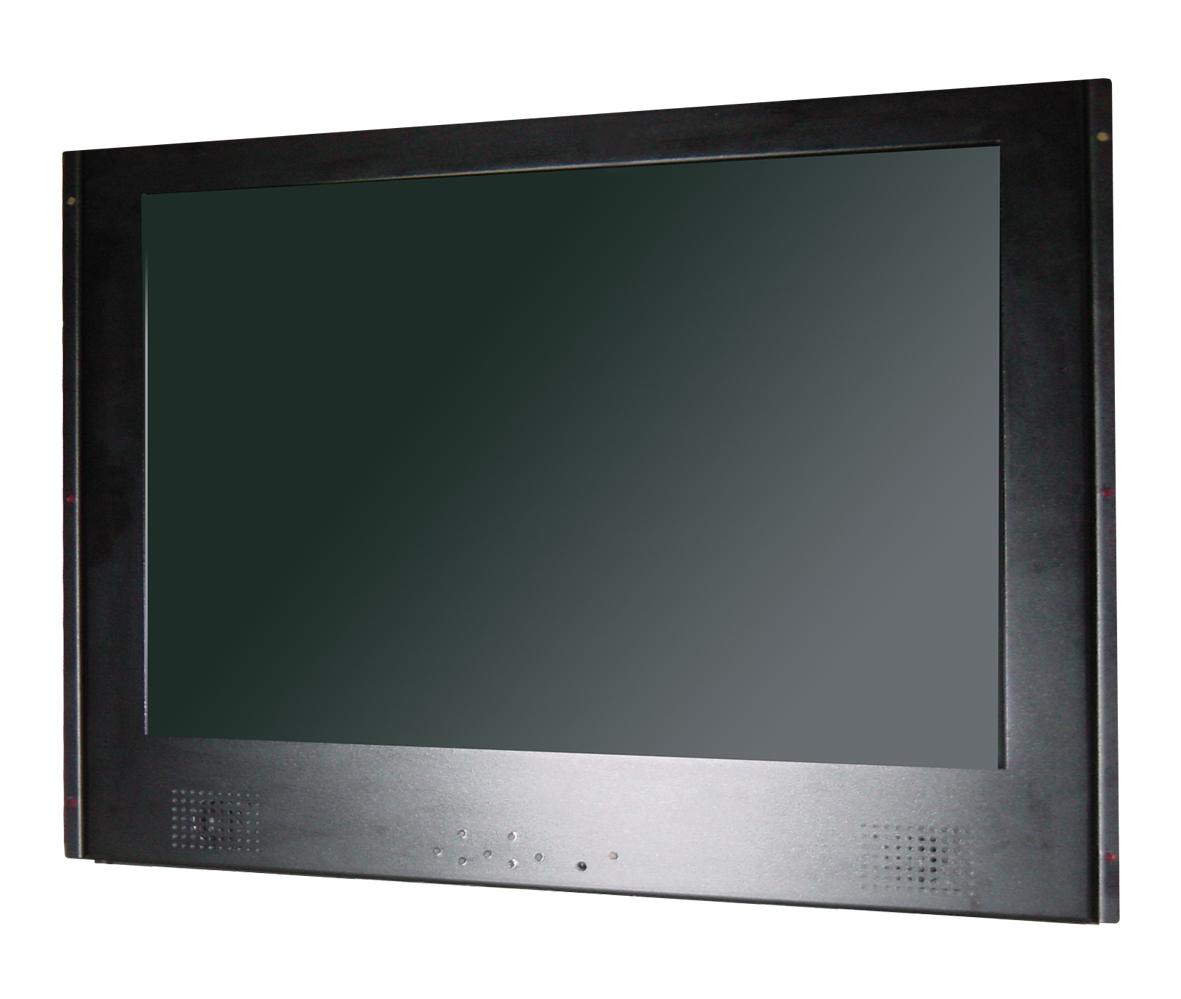

Large image

Data sheet

Dimensions

Specifications:

LCD Display

20.1"TFT Active Matrix Panel

Display Area

408(H) x 306(V) mm

Brightness

1000 cd/m2

Max. Resolution

800 x 600

Contrast Ratio

500:1

Response Time (Typ.)

16 ms (Typ.)

Pixel Pitch(mm)

0.51 (H) x 0.51 (V)

Display Colors

16.7M

Viewing Angle

+85 ~-85 (H), +85 ~-80 (V)

Horizontal/Vertical Frequency

Hf:31~80KHz; Vf: 56~75Hz

Pixel Frequency

135MHz

PC Connector

D-sub 15 Pin

Video Output (option)

BNC Video Out Jack

Signal Connector (Video)

S-Video/ AV / Component

Audio Output

5Wx2 / 35x105x20mmx2

TV-Tuner (option)

NTSC / PAL

AC/DC Power Adapter Input

AC 100~240V, 50~60 Hz

AC/DC Power Adapter Output

DC 12V/6.66A

Power Comsumption

80W (Max.)

Temperature, Operation

0 ~50 C

Accessary

Remote Control

Dimension (mm)

507 (W) x 415 (H) x 63.1 (D)mm

Weight (Net)

N/W:8.08 kg

Inverter

LI3801
