System specifications
Size: 11.5” x 10.75” x 2.5” steel chassis, black

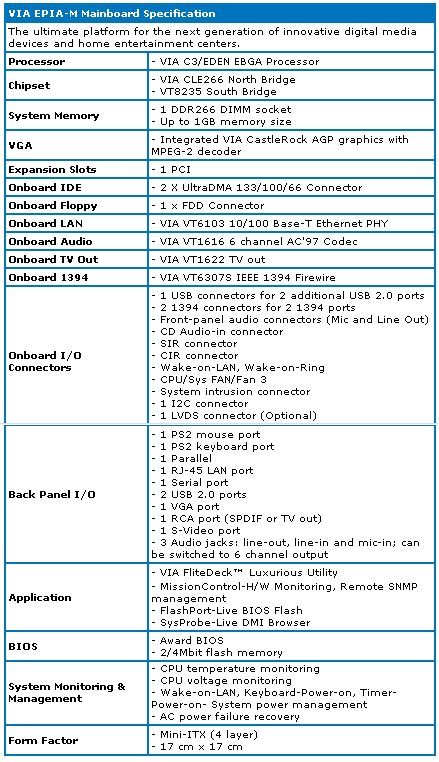

Main board: Low power consumption multimedia
Operating Systems: Windows 2000/XP or Linux
Front panel connections:
- Front USB x2
- Audio, Mic and Line out
- IEE 1394 Firewire.
Rear panel connections:
- Video output (15 pin VGA)
- TV output, S video and Composite jacks
- USB 2.0 ports x 2
- IEE 1394 Firewire
- Audio Mic, Line out and Line in
- Can be used for 6 channel sound outputs
- PS2 keyboard and mouse
- Serial port
- Printer port
- LAN port, 10/100 RJ45 jack
PCI expansion slot, Riser card included
Drive Bays:
- DVD or CDrom drive, slim type
- 3.5” or 2.5” internal hard drive space
- Floppy drives are not supported by the bios
Power Supply:
Internal DC-DC converter for 12 vdc operation :
External Adapter available for AC operation
- Input (AC 100~240 V)
- Output (DC 12V, 4.58A) 55W
Cooling:Two 40mm cooling fans (if required)
Optional fanless 600 Mhz cpu for silent operation
|
