Specifications
|
|
|
LCD
|
10.4 color TFT LCD, 800 x 600 high resolution, high brightness 200 cd/m2, 262, 144 true colors
|
|
LCD brightness
|
200 nits (cd/m2)
|
|
CPU
|
Intel 2.5 GHz Celeron or P-4 low power Mobile fanless 1.2 Ghz CPU
|
|
Chipset
|
Intel 855 chipset & integrated Intel 852 GM for high speed 3D/2D graphic processing engine
|
|
Video
|
64MB video memory for ultimate high speed for 3D/2D graphics
|
|
System Memory
|
Supports slim size SO-DIMM DDR RAM up to 1 GB
|
|
Hard Drive
|
40 GB Slim size 2.5 HDD
|
|
Solid State disk
|
|
|
Options
|
|
|
CD or DVD drive
|
Optional Slim CDrom to load software
|
|
Touchscreen
|
6 wire analog Resistive Touch
|
|
USB ports
|
6 x USB 2.0 high speed ports
|
|
Serial ports
|
5 x RS232 and 1 x RS232/422/485 5 com ports are external at the I/O plate 1 inside for touchscreen use
|
|
Printer port
|
LPT port for Printer connection
|
|
LAN
|
Intel 82540EM supports ultra high speed 1000+ Mbps Gigabit LAN
|
|
Digital I/O
|
|
|
Audio
|
Built in 2 x speakers Intel ICH4 with Realtek ALC650 AC97 codec support 5.1 channel audio sound
|
|
Speakers
|
Built in 2 stereo speakers. External audio jack at the I/O panel
|
|
Keyboard & Mouse
|
1 x PS/2 keyboard/mouse port
|
|
|
|
|
VGA monitor output
|
1 x 15 pin connector for an external monitor on rear I/O panel
|
|
Expansion Slots
|
One mini-PCI slot on board for wireless future expansion
|
|
Power Supply
|
Universal Power supply supporting all DC power supplies are also available
|
|
Power Consumption
|
|
|
Front Panel
|
Solid aluminum, 100% waterproof, meets Nema 4, 12 and IP 65, 56 standards
|
|
Construction
|
Aluminum front panel with steel rear housing
|
|

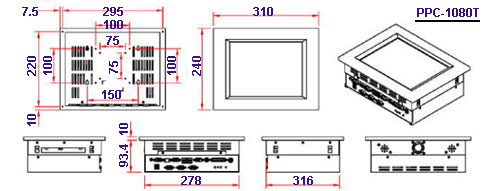

Dimensions (WxHxD)
|
12.2 x 9.45 x 4.1
|
|
Weight
|
|
|
Temperature
|
-1 to 50 deg. C in free air
|
|
Vibration rating
|
Meets IEC-60068 life random vibration test from 5 to 500 Hz at 2G RMS running Win XP Pro
|
|
Shock rating
|
Meets IEC-60068 life shock test at 15G for 11 ms duration running Win XP Pro
|
|
Mounting options
|
Meets VESA-75, 100 wall mount standard Easy Panel mount Wall-mount kit is optional
|
|
Operating System
|
Windows XP Home, XP Pro or Linux - not included
|
|
Ordering Information
|
PPC-1080T with 1.2 Ghz cpu, 1GB DDR ram, 40 GB hard drive, touchscreen = $1899
|
|
Options
|
Windows XP Home - add $109 Windows XP Pro add $195
|
