Specifications

LCD

12.1” color TFT LCD, 800 x 600 high  resolution, 250 cd/m2 brightness, 262, 144 high colors

LCD brightness

 250 nits (cd/m2)

CPU

1 Ghz low power CPU

Chipset

VIA CLE 266 CHIPSET VT8623 and VT8235 CHIPSETS

Video

 64 MB video memory for high speed graphics 2D, 3D acceleration

System Memory

 1 GB high speed DDR RAM

Hard Drive

Slim size 2.5” HDD up to 40 GB

Solid State disk

Options

CD or DVD drive

 Slim size CDrom

Touchscreen

6 wire analog resistive touch screen

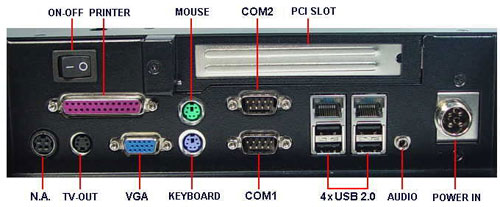

USB ports

4 high speed USB 2.0

Serial ports

3 x RS232  and 1 x RS232/422/485 COM1, 2 exposed, COM3, 4 on board

Printer port

LPT port for Printer connection

LAN

Dual fast 100/10 Mbps Ethernet to speed up the networking ability and firewall purpose

Digital I/O

Audio

Built in 2 stereo speakers

Speakers

Built in 2 stereo speakers. External audio jack at the I/O panel

Keyboard & Mouse

1 PS/2 Mouse port and one PS/2 keyboard port

VGA monitor output

Expansion Slots

32 bit standard PCI expansion bus add on card

Power Supply

Industrial grade AC 100-240V power

Power Consumption

Front Panel

Solid aluminum, 100% waterproof

Construction

Aluminum front panel with steel rear housing

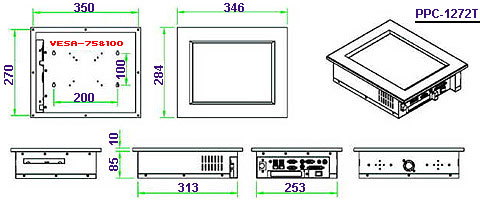

Dimensions (WxHxD)

13.62” x 11.8” x 3.74” (346 x 284 x 95 mm)

Weight

Temperature

0  to 50 deg. C in free air

Vibration rating

Meets IEC-60068 life random vibration test from 5 - 500 Hz at 2G RMS under Win XP Pro

Shock rating

Meets IEC-60068 life shock test at 15G for 11 ms duration running  Win XP Pro

Mounting options

Meets VESA-75, 100 wall mount standard Wall-mount kit is optional

Operating System

Windows or Linux

Ordering Information

 PPC-1272PT with 1 Ghz cpu, 256 mb ram, 40 Gb hard drive and touchscreen = $1899

Options

Windows XP Home - add $109        Windows XP Pro add $195
