Specifications

LCD

23” TFT LCD, wide screen 16:9 format, 1280 x 768 resolution, 16.77 million true colors

LCD brightness

400 nits, Super high brightness, wide viewing angles - 170 deg horizontal and vertical

CPU

Built in Intel 2.4 GHz CPU

Chipset

Video

AGP 8X with hardware MPEG-II engine for high speed video. Shares 16, 32 or 64 Mb system memory

System Memory

256 mb DDR ram is standard and up to 2 Gb DDR ram is optional

Hard Drive

40 GB is standard, larger drives optional

Solid State disk

Optional

Options

CD or DVD drive

None, use external USB CDrom to load software

Touchscreen

USB ports

2 x USB 2.0 ports

Serial ports

Printer port

1 printer port

LAN

1 x Ethernet 10/100 Mbps ports on rear I/O panel

Digital I/O

None

Audio

Hi power 5 watt audio amp built in

Speakers

2 built in

Keyboard

1 x PS2 keyboard port on rear I/O panel

Mouse

1 x PS2 mouse port on rear I/O panel

VGA monitor output

1 x 15 pin connector for an external monitor on rear I/O panel

Expansion Slots

1 x PCI 32 bit slot for add on boards

Power Supply

Universal 100 - 240 vac built in

Power Consumption

Front Panel

Consturction

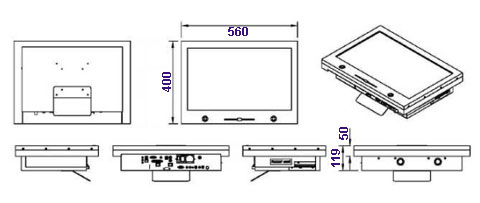

Dimensions (WxHxD)

560 x 400 x 119mm

Weight

Temperature

0 to 50 deg. C in free air

Vibration rating

Meets IEC-60068 life random vibration test from 5 to 500 Hz at 2G RMS running Win XP Pro

Shock rating

Meets IEC-60068 life shock test at 15G for 11 ms duration running  Win XP Pro

Mounting options

Rear VESA standard 75 mm hole pattern for all standard mounting brackets

Operating System

Not included in standard version.

Ordering Information

PPC-2312PT with 2.4 Ghz cpu, 256 mb ram

Options

Windows XP Home - add $109        Windows XP Pro add $195
